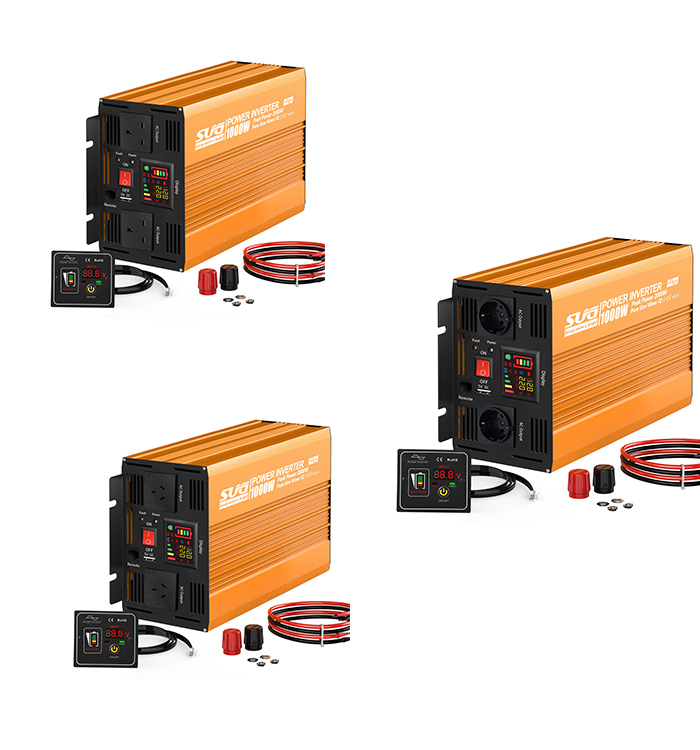

Home Inverter 1000W DC to AC with Pure Sine Wave with UK Socket
Introduction of the products:
SGPR is pure sine wave inverter and researched, designed, produced by ourselves.
10 years continous working and improving, the efficiency increase 5%
8 safety protection, reverse connection protection, surge power protection, over temperature protection,
low voltage protection, over load protection, short circuit protection, over current protection, over voltage protection
FAQ:
1.How solar can be used to produce electricity?
Solar energy is the energy received by the earth from the sun. This energy is in the form of solar radiation, which makes the production of solar electricity possible. Solar electricity relies upon man-made devices such as solar panels or solar cells in order to provide a source of clean, and low cost renewable energy
2.Is current from solar AC or DC?
Current from solar is DC current which can be converted to AC by using Solar inverter. DC load can be used directly in DC current.
Products Specification:
| Model | SGPR1000-121 | SGPR1000-122 | SGPR1000-241 | SGPR1000-242 | SGPR1000-481 | SGPR1000-482 |
| Rated Power | 1000W |
| Surge Power | 2000W(few seconds) |
| Input Voltage | 12VDC | 24VDC | 48VDC |
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5V 0.5A |
| Frequency | 50Hz±3 or 60Hz±3 |
| Output Waveform | Pure Sine Wave |
| Soft Start | YES |
| AC Regulation | THD<3%(Linear Load) |
| Output Efficiency | 94% MAX |
| No Load Current | 0.6A | 0.3A | 0.1A |
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V |
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V |
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V |
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V |
| Cooling Way | Intelligent Cooling Fan |
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit |
| Working Temperature | -10ºC - +50ºC |
| Net Dimension | 28.6*16.5*9.2cm (L×W×H) |
| Meas./Ctn | 48*46*40cm / 6pcs |
| N.W./Unit | 3.1KG |
| G.W./Ctn | 22KGS |
| Packing | box |
| Warranty | 2 Years |
